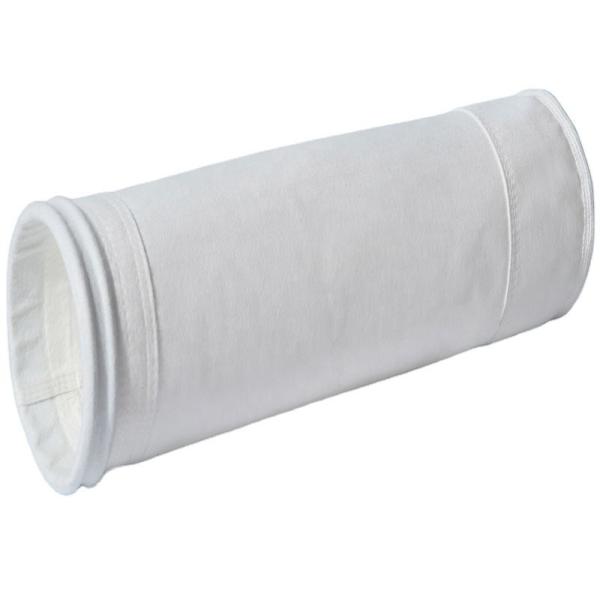

Boiler Polyester Air Dust Filter Bag High Temperature Resistant Industrial

Zhangjiagang Aier Environmental Protection Engineering Co., Ltd.
Contact Now
    Buy cheap Boiler Polyester Air Dust Filter Bag High Temperature Resistant Industrial from wholesalers

    Buy cheap Boiler Polyester Air Dust Filter Bag High Temperature Resistant Industrial from wholesalers
    • Buy cheap Boiler Polyester Air Dust Filter Bag High Temperature Resistant Industrial from wholesalers

    Boiler Polyester Air Dust Filter Bag High Temperature Resistant Industrial

    Ask Lasest Price
    Brand Name : Air
    Model Number : AR-FB
    Price : negotiation
    Payment Terms : T/T (negotiation)
    Supply Ability : around 300000pcs per year
    Delivery Time : around 3weeks upon receipt signed&stamped PO
    • Product Details
    • Company Profile

    Boiler Polyester Air Dust Filter Bag High Temperature Resistant Industrial

    Dust Bag High Temperature Resistant Industrial Dust Remover Boiler Polyester Air Filter Bag


    Article NamePolyester needled felt
    IngredientsFiber100%PET
    Scrim100%PET
    Weightg/m2500
    Thicknessmm1.7
    Densityg/m³0.29
    PermeabilityL/dm2.min130

    Tensile breaking
    strength(N/5cm)

    Warp≥1200
    Weft≥1500
    Elongation @200N/5cmWarp≤5
    Weft≤5

    Maximum shrink
    of 90 mins

    Temperature(°C)150
    %≤1
    Service Temperature(°C)Continuous130
    Instant150
    FinishingHeat setting, Singeing, calendaring
    Parameter
    ItemParameterData
    1MaterialMeta-Aramid
    2scrimMeta-Aramid
    3weight500 gsm
    4Air permability(m3/m2/m@200pa)16-18
    5Strength warp (N/5x200mm)1000
    6Strength Weft (N/5X 200mm)1700
    7Enlongation Warp %19.24
    8Enlongation weft %34.98
    9

    Dry shrink warp %
    ( 150 degree C / 90min)

    0.58
    10

    Dry shrink weft %
    (150 degree C/ 90min)

    0.42
    11operation temperature degree C204
    12Instant temperature degree C240

    Dust filter bag

    Fabric weight:
    500 ± 34 g/sq m
    Thickness:
    2.30 – 2.60 mm
    Permeability:
    300 – 420 lt/m2*s
    Tensile strength – warp / fill:
    > 700 / 1000 N
    Elongation under 3lb strength – warp / fill:
    < 2% / 2%
    Hot shrinkage ( under 205°C, 2 hours):
    < 2.5%
    Treatment:
    Heat set, singed, Calendered

    Nomex filter bag is the best choice for the asphalt mixing plant. As the example of 4000# asphalt mixing machine, there are more than 600 pcs Nomex filter bag for dust filtration, filtration area can reach more than 1400m2, the gas volume can reach at 65300 Nm3/h, the dust filter bag can catch the particl more than 0.3micron, and the working efficiency can reach 97%-99% , and the outlet emssion will be less than 15mg/Nm3.

    Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature. Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost and working condition of bag-house.
    There are three types: woven fabric dust bag, non-woven fabric bag and compound filter material.
    Three shapes: round type, flat type and customized type
    Filtering method: inner filtering & outer filtering

    The Nomex filter bag has the following advantage in this filed:

    1) Perfect high temperature repellent : the Nomex filter bag operation temperature can reach at 204 degree C, the instant temperature can reach at 240 degree C.

    2) Stability size of the bag: there will be less than 1% dry shrink in 204 degree C condition.

    3) Anti-Flame: The Nomex filter bag will be decomposition and oxidation in 400 degree C.the data of LOI will be 30.

    4) The excellent chemical parameter: Anti-Acid and Hydrocarbons

    specifitions
    1. high efficiency dust filtration
    2. high temperature resistance
    3. excellent abrasion resistance
    4. good chemical stability

    Nomex Singe,Heat setting,PTFE macerate, PTFE membrane dust filter bag Nomex air filter bag Show:
