Secondary Efficiency sythetic media bag filter self-supported pocket ​ ​description:

Applications:coarse and fine particle filtration
Type:multi-pocket filter
Frame:galvanized steel, aluminium or plastic
Filter media:progressively structured synthetic fiber
Gasket:EVA or none for plastic frame
EN 779 Class:G3－F8
Average arrestance:80%－99%(ASHRAE 52.1-1992)
MERV:MERV 5－14(ASHRAE 52.2-1999)
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 250Pa(G3-F5)－400Pa(F6-F8)
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:100℃
Max. relative humidity:100%

Air conditional filters

Air conditional filters

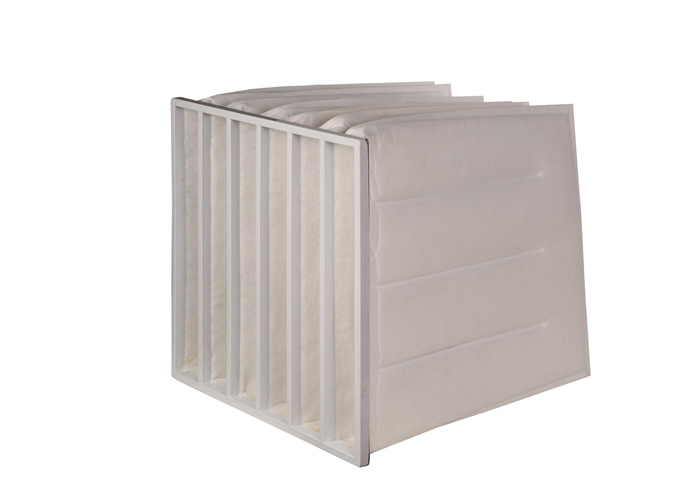

Pocket Medium Bag Filter
1.Large dust holding capacity
2.High efficiency
3.Long working life
4.F5-F8 efficiency

Features:

1. Collect 1 to 5 micron particles. Between each pocket has a metal stick to make frame more firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.

2. Ultrasonic sealing make the filter more strong and not easy to broke

3. Adopt fine synthetic fiber instead of some fiberglass material

4. Material has antistatic fiber, large dust holding capacity and long working life.

5. Pocket mesh efficiency has five different type for choice: 45%, 65%, 85%, 95%, 98%.

6. Firm structure, large dust holding capacity, large air flow.

7. There are F8 (yellow,90-95%), F7 (Pink,80-85%), F6 (green, 60-65%), F5 (White,45-55%) available, with aluminum alloy, stainless steel or galvanized steel frame for selection.

8. Applicable in electronics, precision machinery, instruments, machinery, food and other industries and medium filtering for general air-conditioning ventilation systems.

Using

l Middle filtration for the air-condition, second-level filtration for the precise dust-free room,

l Pre-filtration for the high efficiency filter

Secondary Efficiency sythetic media bag filter self-supported pocket ​Show:
