High temperature normal and high efficiency non woven fabric pleated panel air filters ​description:

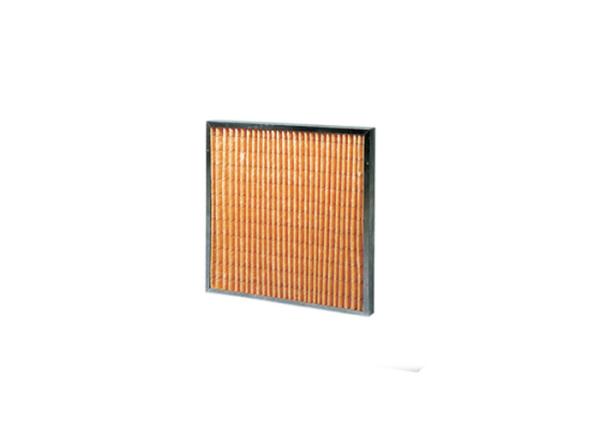

High temperature resistance panel air filter

1) Application: Avoid tar, soot and dust from high-temperature dryer

2) Type: Plank temperature resistance filter

3) Frame: Aluminum alloy, stainless steel or galvanized iron frame

4) Media: Special Synthetic fiber, fiberglass

5) Protect mesh: Aluminum mesh or spray iron mesh

6) En779 class: G3, G4, F5

7) Average arrestance: 85%,90%,93% , (ASHRAE52.1-1992)

8) EUROVENT4/5 classEU3, EU4, EU5,

9) Final resistance: (suggest) 250Pa-(max) 300Pa

10) Max. air flow: 125% of the rated air flow

11) Temp. Resistance : 300°C

12) Humidity: 80%

Air conditional filters

Air conditional filters

Applications: fine particle filtration in ovens
Type: separated pleated cassette
Frame: galvanized steel
Filter media: glass fiber paper
Separators: corrugated aluminium
Protective Grids: galvanized steel mesh
Gasket: glass fiber loop
EN 779 Class: F6－F8
Average arrestance: 98－99%(ASHRAE 52.1-1992)
MERV: MERV 12－15(ASHRAE 52.2-1999)
Final pressure drop:(recommender) 350Pa -(maximum)400Pa
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:260℃
Max. relative humidity:80%

High temperature normal and high efficiency non woven fabric pleated panel air filters Show:

The Company strictly enforces the ISO9001 quality system and introducing advanced management system to implements modern information management in sales, production, suppliers and customers and other aspects. We achieve a paperless production during the process of the production by using the homologous data.

The company has the High And New Technology Enterprise and a number of national patent technologies. The company cooperate with the strength of domestic and foreign environmental companies, and introduces zeolite rotor enrichment, RTO, RCO and other technologies; has developed a “Plasma + Photocatalytic” techonology together with Universities.; has developed the patented technological Fold Type Bag Dust Collector, that is uesed well indomestic electricity, cement, electrolytic aluminum and steel industries. We work with Japan Nittetsu MiningCo., Ltd., developed Sintered Plate Dust Collector for Rubber industry , which can fulfil the requirements of high humidity, high viscosity and high emissions. Our design is as per customer's requirement, We making the treatment plan as per customer's requirement, until now, we have provided customers with more than 300 sets of dust and VOC control programs, covering rubber, chemical, oil, paint, metal, medicine, electricity, welding fumes, air transport, shipbuilding and other industries.

The company has always been adhering to the enterprise values of“professional, quality, service”, always adhering to the working principle of “surviving by quality,innovating by technology, developing by high efficiency, marketing by credibility”. So we won the favor and support quickly from numerous world top 500 enterprises.
