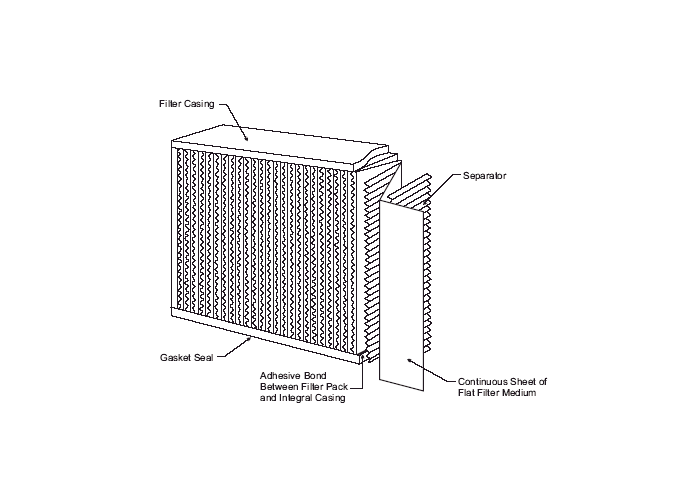

Deep Pleated HEPA Filter cleanroom hepa filter Deep Pleated Aluminum Separator air filter ​ description:

Applications:

Fine particle filtration for clean room Type: deep pleated box
Frame: galvanized steel or aluminium Filter media: glass fiber paper
Separators: corrugated aluminium or paper Sealant: polyurethane
Gasket: closed cells neoprene one piece EN 1822 Class: H10-H14
DOP Efficiency: 95%－99.995% DIN 53438 Flammability: F1
UL 900 Standard:CLASS 2 Final pressure drop: (recommender) 500Pa
Max. air flow rate: 125% of nominal air flow rate Max. operating temperature: 70℃
Max. relative humidity: 80%

Air conditional filters

Air conditional filters

Hepa Filter
1. Low resistance Hepa filter
2. Light weight Hepa filter
3. With Japanese standard level Hepa filter

AR Series HEPA Air Filter Performance:

Application Area:

AR HEPA Filter: Many critical applications in healthcare, science and high technology manufacturing require the highest standards of air filtration. Kowa HEPA filters are manufactured to the most exacting standards for such applications that include: cleanrooms, hospital operating theatres, biological containment laboratories, laminar flow clean benches and safety cabinets, food processing plants, research laboratories.

HEPA Filter Characteristics:

1. AR HEPA filter is the finally filtration in clean room that is used for filtering the particles more than 0.3um.

2. The filter media adopts the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume. All of the media area can be used in completely .

3. The anodized aluminum frame so that it is anticorrosion for long time.

4. The sealant around the media so that the air filter is without any air leaking.

5. The both sides of air filter are metal screens with power coated so that the media is without any damage.

6. Laser to scan each air filter one by one-Hepa filter.

7. Kowa series HEPA filter efficiency range: H10, H11, H13, H14 95%-99.99995%(EN1822).

8. Each air filter accompanies a test report.

9. Technical Specifications : Flange Type & Box Type Sizes Available.

9-1 : 610 mmx610 mm x 150 mm + 290 mm; Customized Sizes Are Available; On Request Filtration Rating: 0. 3 Micron & More; Frame Material: SS 304/GI (Galvanized Steel)/Aluminum; Filtration Efficiency: 90 –99. 9 %; Filter Media: Glass Fiber Media / Spun Bonded Polyester Media.

Deep Pleated HEPA Filter cleanroom hepa filter Deep Pleated Aluminum Separator air filter Show:
