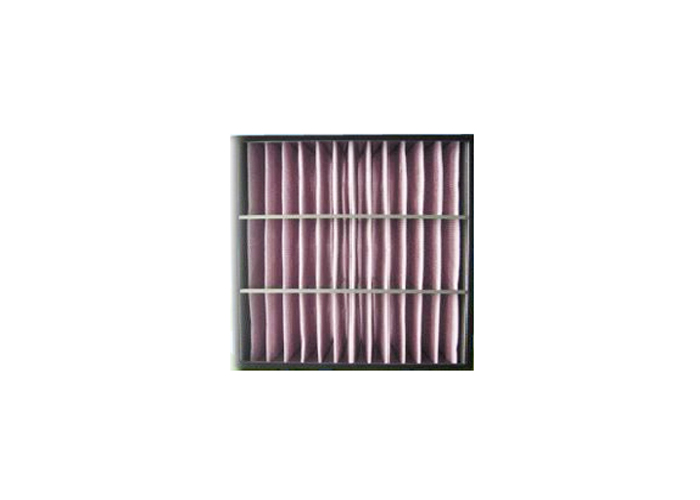

Deep Folds Box Filter high efficiency Deep pleated rigid box filters description:

air conditional filters
Applications: fine particle filtration and pre-filtration for absolute filters
Type: deep folds box filter
Frame: galvanized steel
Filter media: multi-layer complex synthetic fiber
Separators: stiff corrugated cardboard
EN 779 Class: F6－F8
Average arrestance: 99%(ASHRAE 52.1-1992)
MERV: MERV 11－15(ASHRAE 52.2-1999)
DIN 53438 Flammability: F1
UL 900 Standard: CLASS 2
Final pressure drop: (recommender) 450Pa
Max. air flow rate: 125% of nominal air flow rate
Max. operating temperature: 70℃
Max. relative humidity: 80%

Product detail

air conditional filters

Deep Folds Box Filter high efficiency Deep pleated rigid box filters Show:

The Company strictly enforces the ISO9001 quality system and introducing advanced management system to implements modern information management in sales, production, suppliers and customers and other aspects. We achieve a paperless production during the process of the production by using the homologous data.

The company has the High And New Technology Enterprise and a number of national patent technologies. The company cooperate with the strength of domestic and foreign environmental companies, and introduces zeolite rotor enrichment, RTO, RCO and other technologies; has developed a “Plasma + Photocatalytic” techonology together with Universities.; has developed the patented technological Fold Type Bag Dust Collector, that is uesed well indomestic electricity, cement, electrolytic aluminum and steel industries. We work with Japan Nittetsu MiningCo., Ltd., developed Sintered Plate Dust Collector for Rubber industry , which can fulfil the requirements of high humidity, high viscosity and high emissions. Our design is as per customer's requirement, We making the treatment plan as per customer's requirement, until now, we have provided customers with more than 300 sets of dust and VOC control programs, covering rubber, chemical, oil, paint, metal, medicine, electricity, welding fumes, air transport, shipbuilding and other industries.

The company has always been adhering to the enterprise values of“professional, quality, service”, always adhering to the working principle of “surviving by quality,innovating by technology, developing by high efficiency, marketing by credibility”. So we won the favor and support quickly from numerous world top 500 enterprises.
