1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable

Zhangjiagang Aier Environmental Protection Engineering Co., Ltd.
Contact Now
    Buy cheap 1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable from wholesalers

    Buy cheap 1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable from wholesalers
    • Buy cheap 1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable from wholesalers
    • Buy cheap 1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable from wholesalers

    1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable

    Ask Lasest Price
    Brand Name : Air
    Model Number : AR-PF
    Price : negotiation
    Payment Terms : T/T(negotiation)
    Supply Ability : around 30000 pcs per year
    Delivery Time : around 2weeks upon receipt&stamped PO
    • Product Details
    • Company Profile

    1.5 M/S Velocity Air Filter Material Roll Paper / Galvanizef / Aluminium Frame Washable

    Promotion price pre filter cotton air inlet filter cotton roll pre fIlter material for spray booths

    description:

    1. Large dust holding capacity.
    2. Low initial resistance.
    3. Economical and practical.
    4. The inlet and outlet are different

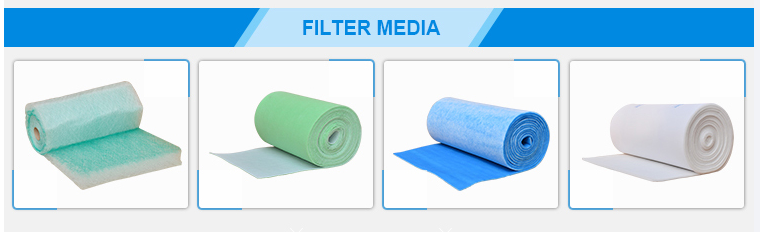

    Pre efficiency filter media

    • Pre-filtration for the heavy polluted general draft apparatus and the air control system
    • Anti-fractured PET organic synthetic fibre
    • Large dust holding capacity, small resistance, long service life and economical
    • Not contain silicon, chemical resistant and anti-acidic
    • Conform to European and American classifications for nonflammability(e.g DIN53438-F1, UI900-class 2 with flameout)
    • Aplied to plank filter and foldaway filter
    • Available in paper frame, galvanize frame, aluminium frame and so on

    Using


    Applied to many industry such as pollution controlling, public construction, air-condition, electronic, pharmacy, food and so on.


    Application: ≥5μm, Filter dust, (used in the places where need washing and filtering), pre-filter through air filter program

    Type: supply pads or rolls size

    Media: synthetic fiber with gradual density

    Washable: about 7-8 times

    EN779 class: G4

    Average arrestance: 91%(ASHRAE52.1-1992)

    EUROVENT4/5 class: EU4

    DIN53438 Non-flammability Standard: F1

    Final resistance: (suggested) 200Pa-250Pa

    Temp. resistance: 100℃


    1. Q: Are you a factory or trading company?

    A: We are a professional manufacturing factory of air filter,we are able to supply you with top quality and perfect workmanship OEM and ODM products.


    2. Q: What's the best price you offer ?

    A: The price depend on the material, the quantity,and the design. You can tell us more details that we can quote you with the price. But we ensure that we can give you a best price and the quality.


    3. Q: Whats you sample policy?

    A: Our sample fee is refundable,which means we will return it in you bulk order


    4. Q: Can I get a sample before bulk order?

    A: Yes, In order to text the quality, you can get a sample before bulk order. We are very confident about the quality .

    And the sample time is 7-10 days.But Sample cost is 10-50 Dollars and can be refunded .


    5. Q: What are your manufacturing and shipping time ?

    A: About 25-35 days after confirm the details .


    Promotion price pre filter cotton air inlet filter cotton roll pre fIlter material for spray booths

    TypeDimensions

    Rated air velocity(m/s)


    Initial pressure drop (Pa)

    Rated air flow(m2/h)
    Length(m)Width(m)Thickness(mm)
    Rolls201/220 ± 21.0383600

    ModelAZ-100AZ-150AZ-200AZ-300AZ-400AZ-500
    MaterialPOLYESTER
    Thickness10mm15mm18mm20mm25mm30mm
    Air velocity2.0m/s2.0m/s1.5m/s1.5m/s1.0m/s1.0m/s
    Initial efficiency<20<20<20<20<20<20
    Initial resistance20Pa20Pa20Pa25Pa25Pa35Pa
    Final resistance125Pa200Pa200Pa250Pa250Pa250Pa
    Average arrestance68%83%85%88%91%91%-95%

    Temperature

    Resistance

    100°C100°C100°C100°C100°C100°C
    Temperature short peaks120°C120°C120°C120°C120°C120°C
    Dust holding380g/m2450g/m2500g/m2580g/m2580g/m2680g/m2
    Filtration classG2G3G3G4G4G4/F5
    Normal size1.6m*35m 2.0m*35m1.6m*35m 2.0m*35m1.6m*35m 2.0m*35m1.6m*35m 2.0m*35m1.6m*35m 2.0m*35m

    1.6m*35m 2.0m*35m
