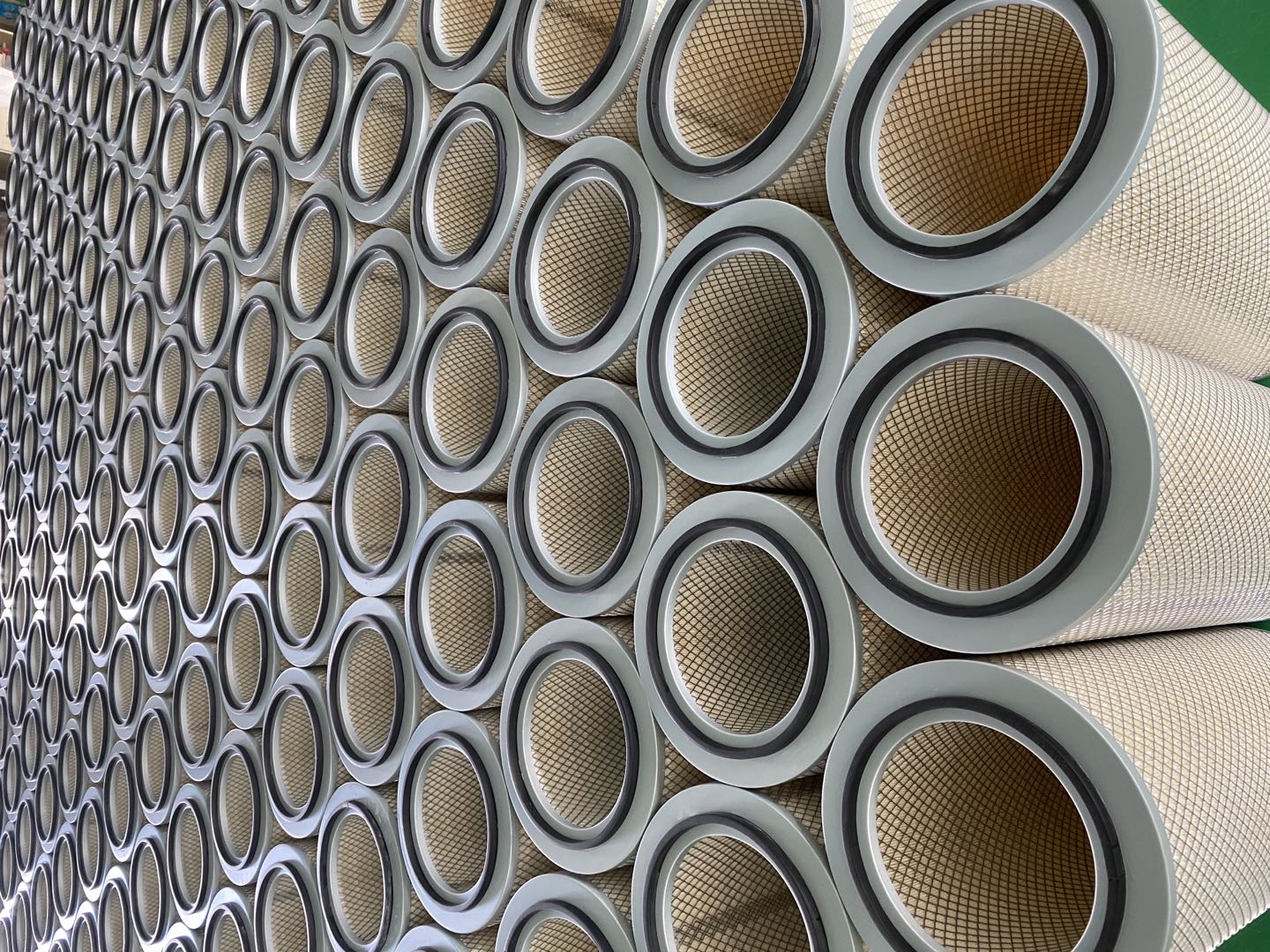

    5um 0.5um 320x1000 Gas Turbine Air Inlet Filters

    Ask Lasest Price
    Brand Name : AIER
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : Around 30000pcs Per year
    Delivery Time : around 2 weeks upon receipt signed&stamped PO
    • Product Details
    • Company Profile

    5um 0.5um 320x1000 Gas Turbine Air Inlet Filters

    Features

    (1) Imported cellulose fiber or synthetic fiber for base media (80%cellulose and 20%polyester).

    (2) Excellent filter efficiency.

    (3) Wide pleat spacing, great filter surface.

    (4) Electrochemical plate/stainless steel top and bottom, no rust.

    (5) Perforated zinc galvanized metal inner core, allows good airflow.

    (6) Specialty chlorine rubber gasket to ensure airtight sealing.

    (7) Applicable temperature: 65°C.

    Specification

    1. Base media: Spunbonded polyester
    2. Operating efficiency: 99.9% on 1 micron
    3. Washable: Several times
    4. Maximum operating temperature: 200oF/93oC
    5. Abrasion resistance: Excellent
    6. Chemical tolerance: Excellent
    7. Optional flame retardant media(FR): To order


    Other composition:
    1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
    and life.
    2. Inside cage: Galvanized steel, to prevent corrosion.
    3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
    4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.



    FAQ

    * part number OEM.

    * size and structure OEM.

    What is the material of our product?

    * national filtering materials: oil paper/fiberglass/stainless steel mesh / 304 all-steel mesh,

    * imported filter material: glass fiber imported from HV company in the United States. Paper imported from Korea.

    * cover material: carbon steel and stainless steel and aluminum and processing.

    What is the warranty: 1 year?

    Our warranty period is one year, which means the correct installation and normal conditions of use. If our goods meet any quality problems, we will remanufacture for you again.

    ModelSpecificationAirflowInstallation holeInitial resistanceFilter areaFilt Efficiency
    AR-DJ3266406/360Xφ324X6601000m3/hφ14120~150Pa22.3m299%
    AR-DJ3266φ445Xφ324X660900m3/hφ14120~150Pa25 m299%
