dust collector air filter cartridge,wam filter,wam filter cartridges Dust Canister Filter description:

Dust filter cartridge

Anti-static air filter cartridge is anti-static aluminum coated treatment, the filter surface covered with a layer of thin aluminum breathable conductive coating to avoid static flash, used for dust explosion-proof condition.

Specification

Construction:
1) Top cap: open steel plate, no rust
2) End cap: open or closed steel plate, no rust
3) Filter surface: various available
4) Inner core: galvanized mesh
5) Outer strip band: one piece as reinforcement
6) Gasket: specialty rubber to ensure airtight sealing

Features:
1) Filter media : Polyester + ALU coating
2) Source of media: Germany, Japan or China
3) Excellent resistance against electric conductance

Chemical Resistance:
1) Oil and water resistance: good
2) Hydrolysis resistance: Good
3) Acid resistance: Good
4) Alkaline Resistance: Good

Dust Release: Excellent

Both the size of the cartridge and the shape of the caps are available in various specifications.
All configurations are changeable to meet the optimum performance of your applications.
Please contact us directly for more technical information.

Product Descriptions:

Pleated Nomex Incinerator Dust Collector Air Filter Cartridges are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability. Pleated filter media offer high filtration efficiency, very fine retention level, easy clean ability & aesthetically good product than other normal filter media.

Features:

(1) Air Intake Cartridges for gas turbines and Air compressors are modern andReliable.

(2) The variety and range of materials and specifications make it possible to find suitable filter media for any Environmental conditions.

(3) The quality of the materials used ensure high performance standards.

Filter Material:

1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

https://www.youtube.com/watch?v=aUaBDyIUt10

https://youtu.be/IV795B_37vU

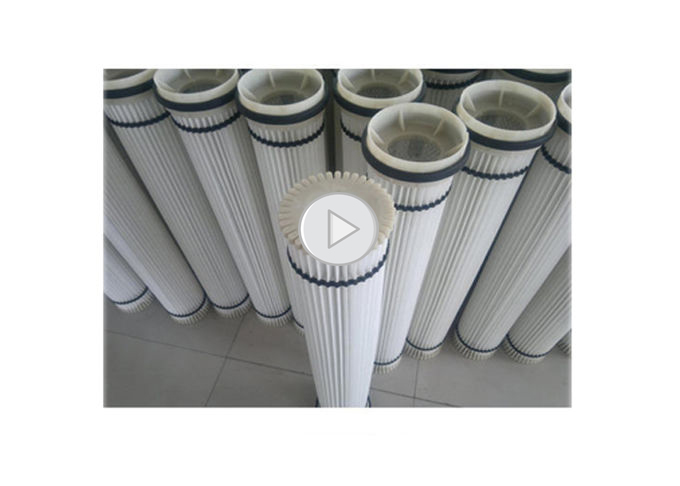

Dust collector air filter cartridge,wam filter,wam filter cartridges Dust Canister Filter Show:

The Company strictly enforces the ISO9001 quality system and introducing advanced management system to implements modern information management in sales, production, suppliers and customers and other aspects. We achieve a paperless production during the process of the production by using the homologous data.

The company has the High And New Technology Enterprise and a number of national patent technologies. The company cooperate with the strength of domestic and foreign environmental companies, and introduces zeolite rotor enrichment, RTO, RCO and other technologies; has developed a “Plasma + Photocatalytic” techonology together with Universities.; has developed the patented technological Fold Type Bag Dust Collector, that is uesed well indomestic electricity, cement, electrolytic aluminum and steel industries. We work with Japan Nittetsu MiningCo., Ltd., developed Sintered Plate Dust Collector for Rubber industry , which can fulfil the requirements of high humidity, high viscosity and high emissions. Our design is as per customer's requirement, We making the treatment plan as per customer's requirement, until now, we have provided customers with more than 300 sets of dust and VOC control programs, covering rubber, chemical, oil, paint, metal, medicine, electricity, welding fumes, air transport, shipbuilding and other industries.

The company has always been adhering to the enterprise values of“professional, quality, service”, always adhering to the working principle of “surviving by quality,innovating by technology, developing by high efficiency, marketing by credibility”. So we won the favor and support quickly from numerous world top 500 enterprises.
