Square plate dust air filter cartridge Square Flange Top Air Dust
Filter Cartridge description:

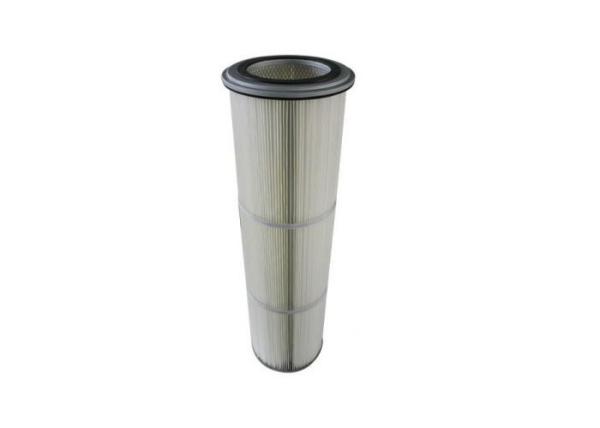

Dust filter cartridge
Product Features of Flat Cell Filters :
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2) Good abrasion resistance,and the capability of withstand airflow
pulse inverse blow is better than traditional filter media.
3) Smooth filter media surface,not sticky.
4) Excellent chemical resistance.
5) Electro-galvanized / stainless steel cover, central skeleton.
6) Professional sealing obturator elastic neoprene.
7) Good filter material stiffness,can be repeated washed.
8) Operating temperature ≤ 135 ° C.
9) Greatly increase the effective filtration area.
10) Ensure a low steady differential pressure, improve the circulation
of air flow.
11) Small filter cartridge element, easy to install.
12) Especially suitable for large dust concentration industry.
| Structure | Pleated air filter circular flange dust collector cartridge filter |
| Dimension | 372(TOP OD)*160(TOP ID)*232(BOTTOM OD)*365(H) |
| Pleats Number | 100 Pleats |
| MOQ | NO MOQ . But advice full container to save cost. 20GP FCL: 609 pieces 40GP FCL: 1250 pieces 40HQ FCL: 1449 pieces |
| Loading Port | Shanghai |
| Lead Time | Around 14 days for 20GP container |
| Payment | T/T ; West Union ; Paypal |
| Shipment | By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door |
| Package | |
| Max Capacity | Around 1000 pcs per week |
Specification:
| Model | Filter area | Length | Cartridge (2mLength) | Media Weight | Air permeability | Media type |
| AR-P1 | 2.3m2 | 1m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| AR-P2 | 4.6m2 | 2m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester |
| AR-D1 | 2.3m2 | 1m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| AR-D2 | 4.6m2 | 2m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Antistatic Spun bond polyester |
| AR-F1 | 2.3m2 | 1m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| AR-F2 | 4.6m2 | 2m | 135℃ | 270g/m2 | 7m3/m2/min 12mm WC | Spun bond polyester + PTFE |
| AR-N1 | 2.3m2 | 1m | 190℃ | 500g/m2 | 7m3/m2/min 12mm WC | |
| AR-N2 | 4.6m2 | 2m | 190℃ | 500g/m2 | 12m3/m2/min 12.7mm WC | |
| | | | | | |
Product Description:
Developed to replace traditional filter bags and cages, each
pleated bag filter has a one-piece construction design which allows
it to be used in new systems or as a simple retrofit in existing
bag house equipment for improved system performance.
Pleated bag filters offer more filtration media than traditional
felt bags increasing the filtration surface area and thus the
filtration capacity. With up to 2-3 times the filter life over
traditional 16 oz. polyester felt bags, pleated bag filters provide
almost twice as much filtration area in existing equipment due to
increased media in the pleat pack design.
Dust filter cartridge
Features:
(1) World famous brand filter media: 100% spun bond polyester
Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of
pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to
requirements Various installation options available.
(4) Airtight gasket accessories available Applications in many
temperatures conditions. filter media options:

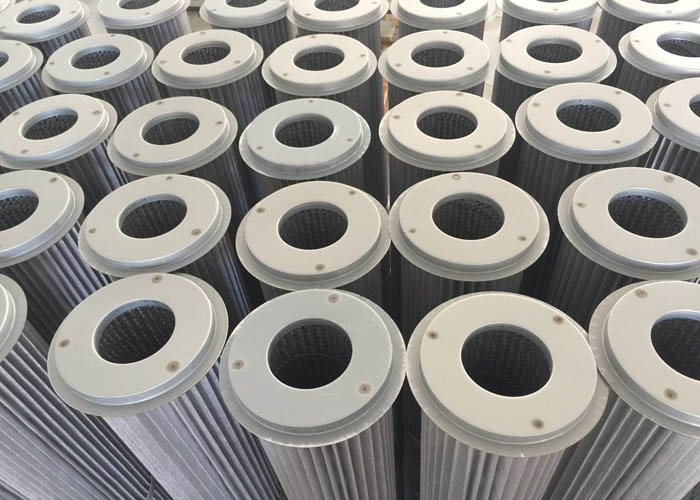

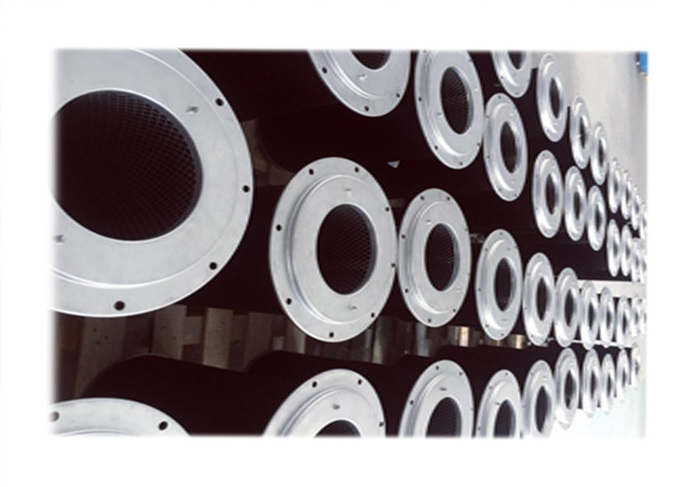

Flange mountingTop Air Dust Filter Cartridge Plastic dust filter
cartridge Show:
