5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic

Zhangjiagang Aier Environmental Protection Engineering Co., Ltd.
Contact Now
    Buy cheap 5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic from wholesalers

    Buy cheap 5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic from wholesalers
    • Buy cheap 5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic from wholesalers

    5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic

    Ask Lasest Price
    Brand Name : AIR
    Price : negotiation
    Payment Terms : T/T(negotiation)
    Supply Ability : around 30000pcs per year
    Delivery Time : around 2 weeks upon receipt signed&stamped PO
    Model Number : Gas Turbine filters
    • Product Details
    • Company Profile

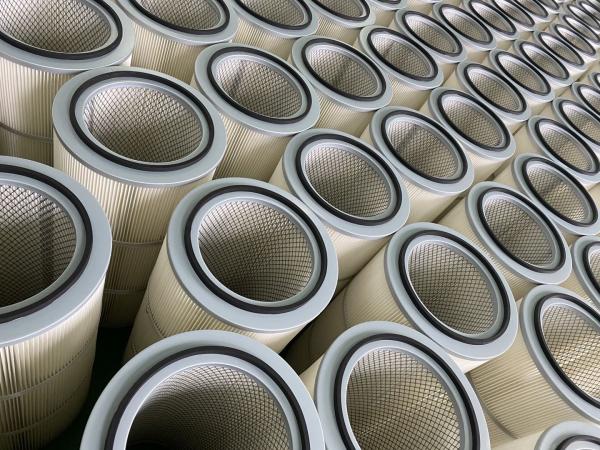

    5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic

    Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic​ Description
    Features:

    (1) Imported cellulose fiber or synthetic fiber for base
    media (80%cellulose and 20%polyester).
    (2) Excellent filter efficiency.
    (3) Wide pleat spacing, great filter surface.
    (4) Electrochemical plate top and bottom, no rust.
    (5) Perforated zinc galvanized metal inner core, allows good airflow.
    (6) Specialty chlorine rubber gasket to ensure airtight sealing.
    (7) Applicable temperature: 65°C.
    Specification:

    ModelshapeOD.(mm)ID.(mm)H:(mm)Filter area(m2)
    324559Cylinder32421355918
    324660Cylinder32421366021
    324700Cylinder32421370022.3
    324735Cylinder32421373523.5
    408875Cylinder40829387533.2
    408559Cylinder40829355921.6
    324865(Twist lock)Cylinder32421386525
    445660Cone445-324330-21366023.3
    408711Cone408-324293-21371123
    408925(Twist lock)Cone408-324293-21392534.3
    324668F(Tenkay type)CylinderTop cap:
    406*362
    21366822
    324875F(Tenkay type)CylinderTop cap:
    406*362
    21387528
    Customized is avalable

    Gas Turbine filters

    DescriptionSpecificationChemical properties
    NameMaterialPost-processingWeigth g/m2Thickness
    (mm)
    Max. Temp.
    ºC
    PermeabilityOil water proofWater proofAcidAlkali
    00120%polyester+80%celluse1300.6480
    00215%polyester+85%celluse1240.780
    007100%celluse1180.7980★★★----
    01090%polyester+10%celluse1130.4380★★★★
    019NWFR15%polyester+85%celluseNano flame retardant1370.7980★★★★
    020NW15%polyester+85%celluseNano1320.8480★★★★
    214100%polyester1700.54110★★★★
    316100%polyesterNew type of coated1350.58110★★--★★★★★★★
    -- NO, Ordinary, ★★Good , ★★★ Very good

    suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash and floating dust collection;Widest applications, dry and granular shaped particulate Metal working Shot Blasting Mining industry Chemical Gas turbine

    Filter Material:
    1. Base media: Spunbonded polyester
    2. Operating efficiency: 99.9% on 1 micron
    3. Washable: Several times
    4. Maximum operating temperature: 200oF/93oC
    5. Abrasion resistance: Excellent
    6. Chemical tolerance: Excellent
    7. Optional flame retardant media(FR): To order

    Other composition:
    1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability and life.
    2. Inside cage: Galvanized steel, to prevent corrosion.
    3. Molded top: Available in a varitety of styles and sizes to fit a wide range of tubesheet holes.
    4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

    Applications:
    1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
    2 Markets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
    3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
    4. Available for collectors: Torit DFT
    5. Substitute: , Nodic, BHA




    Quality 5um,0.5um,0.2um,2um,Gas Turbine Air Filter Construction Industries Large Air Flow Synthetic for sale
