Laser Cutting Cartridge Dust Collector Portable Welding Fume
Automatic Pulse Jet Dashing Description:
Advantages:
1). Lower resistance of filter cartridge, low consumption, low cost
, portable;
2). 360° flexible fume extraction arms / sucking hood, convenient
installation
3). With Two-stage filtering, efficiency can be 99.99% against
0.3UM particle
4). automatic pulse jet dashing, easy operation
5). Simple structure, competitive price
6).welding, cement, profile cutting, grain and mechanical
processing etc
Cartridge Dust Collector
| odel No. | Air Volume | Cartridge Qty. | Filter Area | Power | G.W | Noise | Dimension |
| m3/h | pcs | m2 | kw | kg | dB(A) | L mm | W mm | H mm |
| AR-CH2-4 | 3000---3500 | 4 | 70.6 | 5.5 | 1000 | 80 | 2080 | 1200 | 1400 |
1. Horizontally installed cartridges.
2. High efficiency.
3. Material—carbon steel or stainless steel.
4. Block building structure, can be constructured to handle the
required airflow.
5. Suitable air filter cartridges installed according to dust
properties.
6. Completed with pulse jet valves and control systems.
Cartridge Dust Collector
| MODEL | Weight(kg) | Unit | Cartridge No. | Filter area(m2) | L*W*H(mm) | Airflow (m/h) |
| AR-CH3-12 | 1720 | 1 | 12 | 276 | 1021×2275×4513 | 8400 |
| AR-CH3-24 | 2600 | 2 | 24 | 552 | 2042×2275×4513 | 16800 |
| AR-CH3-36 | 3640 | 3 | 36 | 826 | 3063×2275×4513 | 25200 |
| AR-CH3-48 | 4840 | 4 | 48 | 1104 | 4084×2275×4513 | 33600 |
| AR-CH3-60 | 6100 | 5 | 60 | 1380 | 5105×2275×4513 | 42000 |
| AR-CH3-72 | 6860 | 6 | 72 | 1656 | 6126×2275×4513 | 50400 |
| AR-CH4-16 | 2130 | 1 | 16 | 368 | 1021×2275×4996 | 11200 |
| AR-CH4-32 | 3100 | 2 | 32 | 736 | 2042×2275×4996 | 22400 |
| AR-CH4-48 | 4270 | 3 | 48 | 1104 | 3063×2275×4996 | 33600 |
| AR-CH4-64 | 5580 | 4 | 64 | 1472 | 4084×2275×4996 | 44800 |
| AR-CH4-80 | 7000 | 5 | 80 | 1840 | 5105×2275×4996 | 56000 |
| AR-CH4-96 | 8360 | 6 | 96 | 2208 | 6126×2275×4996 | 67200 |
Product Description:
Portable welding fume industiral Welding Fume Dust Collector for
welding/sanding/ polishing or other metal fabrication is a mainly
designed for welding.
Large Airflow Dust Collector For Food Processing ;
AR Casting Dust Collectors utilize high efficiency cartridge
filters to provide effective collection of a broad range of dust
particles and contaminates, such as wood, composites, plastic, dry
powder, metals, toner, and cement. Operations include grinding,
sanding, foundry, welding, fabrication, blasting, metalizing, and
powder coating. The BND Dust Collector is designed for
customization to unique applications. It is available in
configurations of variable dimensions, number of cartridges, and
optional features to effectively clean particulates ranging in
type, size, and loading amount.

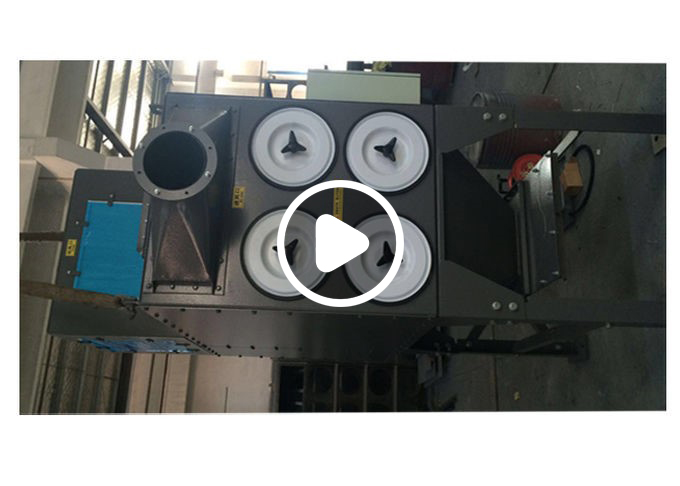

Laser Cutting Industrial Cartridge Dust Collector Industiral
Welding Fume Dust Collector Show:
