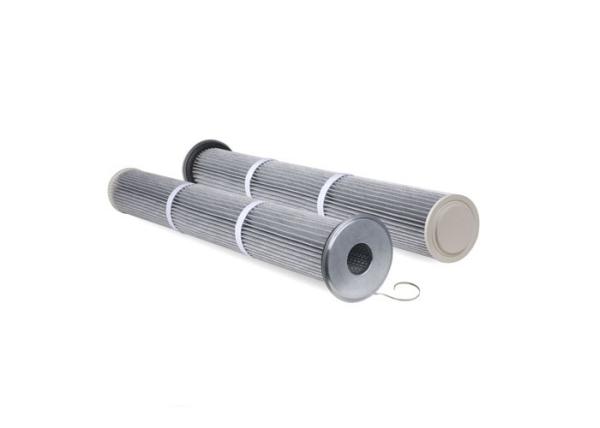

5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters

Zhangjiagang Aier Environmental Protection Engineering Co., Ltd.
Contact Now
    Buy cheap 5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters from wholesalers

    Buy cheap 5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters from wholesalers
    • Buy cheap 5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters from wholesalers
    • Buy cheap 5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters from wholesalers
    • Buy cheap 5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters from wholesalers

    5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters

    Ask Lasest Price
    Brand Name : Air
    Model Number : AR-PE1492Dust filter cartridge
    Price : Negotiation
    Payment Terms : T/T(Negotiation)
    Supply Ability : around 30000pcs per year
    Delivery Time : around 2 weeks upon receipt signed&stamped PO
    • Product Details
    • Company Profile

    5um,0.5um,2um,0.2um Low Pressure Drop Dust Filter Cartridge , Galvanized Mesh Industrial Cartridge Filters

    Low Pressure Drop Pleated Filter Cartridge , Industrial Hepa Filter Careful Construction Description​:

    Dust filter cartridge

    Detailed informations(Products):
    1. Pleated air filter cartridges are widely used in dust collectors in various operating environments, from shot blasting to wood dust filtration. Thanks to plenty of filter media selection and many finishing treatment techniques, we can always provide you a proper filter element to clean your air perfectly.
    2. Features: Problem-free installation, careful construction, low pressure drop and competitive price.


    ModelFilter area(m2)Length(M)Temperature(℃)Media Weight(g/m2)Air permeabilityMedia type
    P12.311352707m3/m2/min@12mm WCSpun bond polyester
    P24.621352707m3/m2/min@12mm WCSpun bond polyester
    D12.311352707m3/m2/min@12mm WCAntistatic spun bond polyester
    D24.621352707m3/m2/min@12mm WCAntistatic spun bond polyester
    F12.311352707m3/m2/min@12mm WCSpun bond polyester+PTFE
    F24.621352707m3/m2/min@12mm WCSpun bond polyester+PTFE


    Structure:

    ItemMaterial(Standard)Material(Alternative)
    Filter MediaCellulose/Synthetic fiber/All kinds of H&V air filtration`s filter
    Nanofiber/Polyester fibermedia selection
    Top cap/Galvanized steelStainless steel,Color-coated steel,
    Bottom caprecyclable plastic ABS
    (Open/Closed)
    GasketEPDMUrethane/Silicone
    Inner MeshGalvanized steelStainless Steel,Color-coated steel,
    Recyclable PP
    Outer Straps/OuterOptionalGalvanized steel,Stainless Steel,
    MeshGlued or ultasonic straps
    Finishing TreatmentTeflon-coating,waterproofing,oilproofing,flame-retarding
    treatment, antistatic coating,etc


    Company advantages:
    1. The biggest manufacturer of filters in China;
    2. H&V`s biggest customer in China;
    3. Our vast experiences and the state-of-the-art laboratory enable us to provide customization;
    4. Welcome you to our factory and you will be convinced by our advanced workmanship and big scale.

    Applications:
    Industrial air filtraton of dut and fumes in many industries: Metallurgy, Cement, Woodworking, Chemicals Powder coating, Plasma/laser cutting, Sandblasting, Textiles, Welding and Casting, Food&Beverage, Aerospace.

    We warmly welcome:
    -- Famous brand to do OEM;
    -- End users or agents to find replacements here;
    -- Dust collector manufacturers to do customization.
