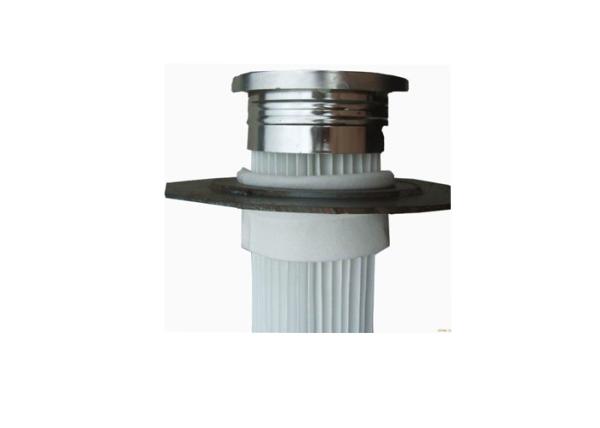

Industrail Galvanized Filter Cartridge End Cap Galvanized Cartridge Air Filter End Caps ​

Product Descriptions

Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass

Feature
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.

(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.

(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

(4) Excellent resistance to chemical erosion.

(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Specification

Filter Material:
1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

Applications:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: SFF/XLC, SFFK, Torit DFT
5. Substitute: Donaldson, Nodic, BHA

Industrail Galvanized Filter Cartridge End Cap Galvanized Cartridge Air Filter End Caps ​Show

The Company strictly enforces the ISO9001 quality system and introducing advanced management system to implements modern information management in sales, production, suppliers and customers and other aspects. We achieve a paperless production during the process of the production by using the homologous data.

The company has the High And New Technology Enterprise and a number of national patent technologies. The company cooperate with the strength of domestic and foreign environmental companies, and introduces zeolite rotor enrichment, RTO, RCO and other technologies; has developed a “Plasma + Photocatalytic” techonology together with Universities.; has developed the patented technological Fold Type Bag Dust Collector, that is uesed well indomestic electricity, cement, electrolytic aluminum and steel industries. We work with Japan Nittetsu MiningCo., Ltd., developed Sintered Plate Dust Collector for Rubber industry , which can fulfil the requirements of high humidity, high viscosity and high emissions. Our design is as per customer's requirement, We making the treatment plan as per customer's requirement, until now, we have provided customers with more than 300 sets of dust and VOC control programs, covering rubber, chemical, oil, paint, metal, medicine, electricity, welding fumes, air transport, shipbuilding and other industries.

The company has always been adhering to the enterprise values of“professional, quality, service”, always adhering to the working principle of “surviving by quality,innovating by technology, developing by high efficiency, marketing by credibility”. So we won the favor and support quickly from numerous world top 500 enterprises.
