    5um,0.5um,2um,0.2um Powder Coating Spray Booth Recycling Pleated Filter Cartridge

    Ask Lasest Price
    Brand Name : Air
    Model Number : AR-PE3266Dust filter cartridge
    Price : Negotiation
    Payment Terms : T/T(Negotiation)
    Supply Ability : around 30000pcs per year
    Delivery Time : around 2 weeks upon receipt signed&stamped PO
    • Product Details
    • Company Profile

    5um,0.5um,2um,0.2um Powder Coating Spray Booth Recycling Pleated Filter Cartridge

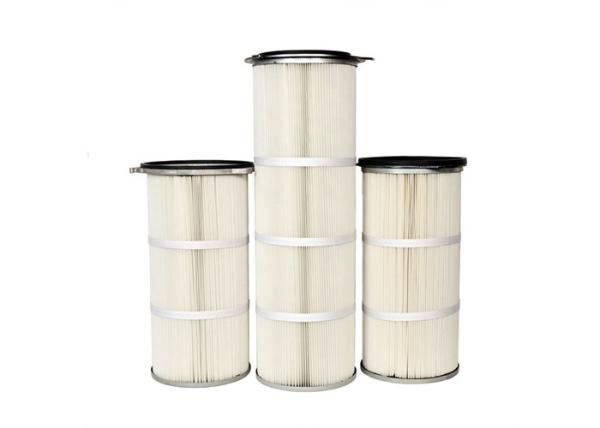

    ​Cylindrical Type Pleated Filter Cartridge Powder coating Spray Booth Recycling Filter Cartridge

    Product Description

    Cylindrical Type Pleated Filter Cartridge For Dust Collector;
    Media Types are :
    1. Polyester
    2. Antistatic Polyester (Carbon, Steel)
    3. Polyphenylene Sulphide
    4. Aramid
    5. PTFE

    Specification:

    Dust filter cartridge

    Model

    Shape

    OD(mm)

    ID(mm)

    Length(mm)

    Filter Area(M2)

    32600

    Cylindrical

    324

    213

    600(22)

    18
    213

    3266

    Cylindrical

    324

    213

    660(26")

    21

    32700

    Cylindrical

    324

    213

    700(27.5")

    22.3

    32865

    Cylindrical

    324

    213

    865(34)

    25
    330-213

    408F

    Cylindrical

    408

    213

    735(29")

    23.5

    408F

    Cylindrical

    408

    293

    559(22")

    21.6

    32865

    Cylindrical

    324

    213

    865(34")

    25

    445C

    Conical

    445-324

    330-213

    660(26")

    23.3

    324C

    Conical

    324-250

    213-134

    660(26")

    16.4

    408C

    Conical

    408-324

    293-213

    711(28")

    23

    408C

    Conical

    408-324

    293-213

    925(36.6")

    34.3

    406/324

    Cylindrical

    324Top cap size406×362

    213

    668(26.3)

    22
    213

    406/324

    Cylindrical

    324Top cap size406×362

    213

    875(34.5")

    28

    Features:

    (1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.

    (2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.

    (3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

    (4) Excellent resistance to chemical erosion.

    (5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

    Other composition:
    1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
    and life.
    2. Inside cage: Galvanized steel, to prevent corrosion.
    3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
    4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

    Applications:
    1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
    2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
    3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
    4. Available for collectors: FT dust collector, Torit DFT
    5. Substitute: Donaldson, Nodic, BHA


    Notes:
    1. Optional construction and dimensions are available on all cartridges.
    2. Please contact us to make optimal filtration solutions of your applications.

    Dust filter cartridge

    https://youtu.be/IV795B_37vU

    https://www.youtube.com/watch?v=h7xUgYrQosA

    Powder coating Spray Booth Recycling Filter Cartridge filter Cylindrical Type Pleated Filter Cartridge​ show:
